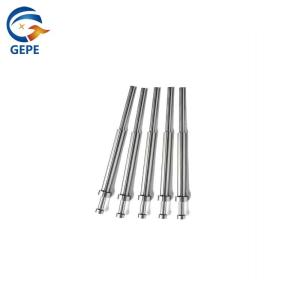

Non Standard Metric Straight Ejector Sleeve / Ejector Pins SKD61 Nitrided Ejector Pins
Description
The bobbin is also called pipe jacking and pipe pushing. When the cylinder is ejected, the ejection force is large and uniform. When there are circular through holes or blind holes on the product and the glue position must be ejected, it is very suitable to use the cylinder ejection.
Dimensional Drawing
SKD61 has good toughness and high temperature fatigue resistance. It can withstand temperature fusion. It is suitable for long-term work at high temperature. It has good cutting performance and polishing performance. It is the best material for making ejector pins and cylinders.
SKD61 is also suitable for the manufacture of high-volume plastic molds. The nitriding treatment can obtain a good hardened layer structure on the surface of the mold, and improve the wear resistance and corrosion resistance.
Product features
| Shaping Mode | Plastic Injection Mould/Compression Mould | Place of Origin | Guangdong, China |
| Material | SKD61 | Treatment | Nitrided |
| hardness | 48-52HRC | MOQ | Negotiation |
According to HASCO standard, we have the following standard sizes of thimbles in stock, generally can be shipped within 3 working days, if customized thimbles, delivery time is generally 10-20 days.
| Rod diameter | Diameter of Head*Height of Head(D*H) | Rod diameter | Diameter of Head*Height of Head(D*H) |
| 0.8 | 2.5*1.2 | 5.5 | 10*3 |
| 1 | 2.5*1.2 | 6 | 12*5 |
| 1.1 | 2.5*1.2 | 6.2 | 12*5 |
| 1.2 | 2.5*1.2 | 6.5 | 12*5 |
| 1.3 | 3*1.5 | 7 | 12*5 |
| 1.4 | 3*1.5 | 7.5 | 12*5 |
| 1.5 | 3*1.5 | 8 | 14*5 |
| 1.6 | 3*1.5 | 8.2 | 14*5 |
| 1.7 | 3*1.5 | 8.5 | 14*5 |
| 1.8 | 3*1.5 | 9 | 14*5 |
| 1.9 | 3*1.5 | 10 | 16*5 |
| 2 | 4*2 | 10.2 | 16*5 |
| 2.2 | 4*2 | 10.5 | 16*5 |
| 2.5 | 5*2 | 11 | 16*5 |
| 2.7 | 5*2 | 12 | 18*7 |
| 3 | 6*3 | 12.2 | 18*7 |
| 3.2 | 6*3 | 12.5 | 18*7 |
| 3.5 | 7*3 | 13 | 20*7 |
| 3.7 | 7*3 | 14 | 22*7 |
| 4 | 8*3 | 14.5 | 22*7 |
| 4.2 | 8*3 | 16 | 22*7 |
| 4.5 | 8*3 | 18 | 24*7 |
| 5 | 10*3 | 20 | 26*8 |
| 5.2 | 10*3 | 25 | 32*10 |
| | | 32 | 40*10 |
Why choose us
- HASCO and other standard parts are in stock, and non-standard customization schemes are provided.
- Your inquiry will be highly valued and answered within 24 hours. Direct supplier, manufacturing price
- Professional manufacturers, advanced equipment and experienced engineers.
- Compared with all other products, the quality is guaranteed and the material quality is superior.
- Customer-oriented, efficient solutions to control costs for customers. Welcome OEM and ODM orders, professional R&D team. High quality and low price, each part will be given 100% quality inspection and testing.
HOW TO BUY
Packing and Shipping
Ejector Pins And Sleeves is sealed with plastic bag, which contains antirust oil, and the outside is packed with carton. As for shipping, all well-known express companies and ocean shipping companies can choose, but only EMS can be used in remote areas. Shipping terms such as EXW, FOB and CIF are available.
